A comprehensive guide for selecting the appropriate HPLC detector
High-performance liquid chromatography (HPLC) is a versatile analytical technique used to separate, identify, and quantify compounds within a mixture. Even if you've picked the right column and optimized the mobile phase, choosing the right detector is just as important in HPLC method development for successful separations. The detector is what transforms your chromatographic separation into meaningful data. You could also say that the detector is “the eye” of the system. It´s what turns invisible compounds into measurable signals to identify and quantify the separated components in your sample.
In this blog, we will summarize the different detection methods used in HPLC, explain the pros and cons of each and provide criteria for detector selection to help you make the right decision.

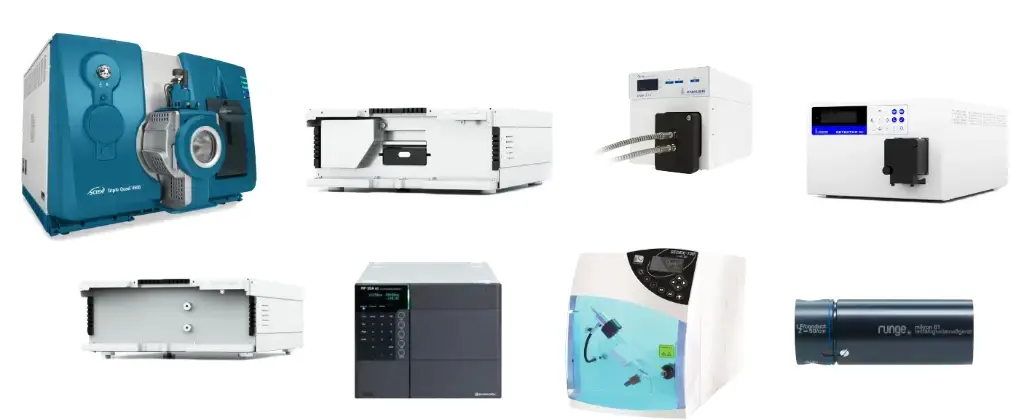

KNAUER's detector portfolio. Graphic by KNAUER.
Detection types in HPLC
Detectors for HPLC can generally be categorized into two main types: (1) specific, sometimes also referred to as solute-property detectors and (2) bulk property detectors. Specific detectors, as the name already suggests, respond to a particular physical or chemical property of the sample, and their response is ideally independent of the mobile phase composition. Examples include UV/Vis, fluorescence or mass spectroscopic detectors. In contrast, bulk property detectors are the most universal and respond to properties common to all analytes by measuring differences between the mobile phase with and without the sample. A common example of a bulk property detector is the refractive index detector. Other examples include conductivity, or light scattering detectors.

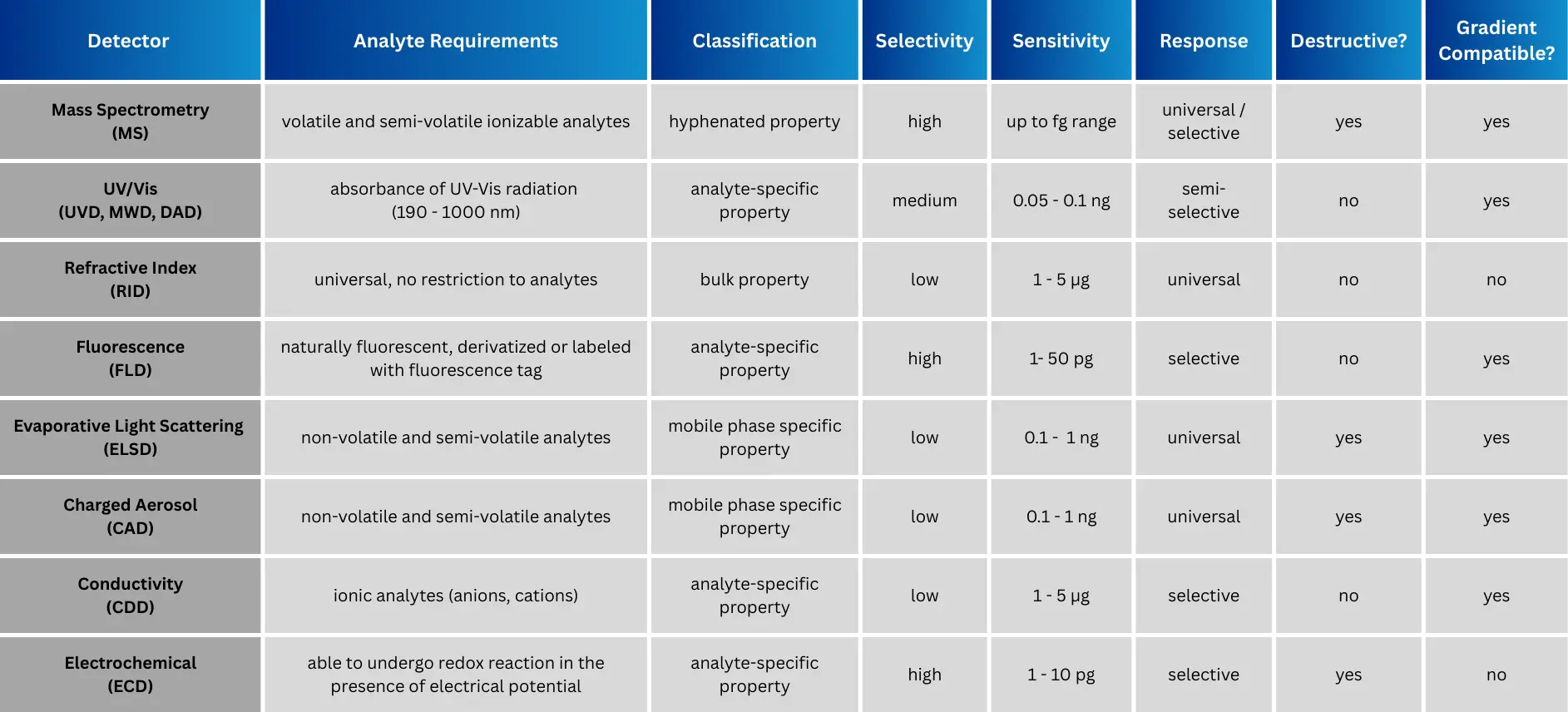

The following overview lists the most common detectors used in HPLC and their characteristics. The selection of detectors includes both universal options and highly selective, sensitive models.
Detector overview with characteristics. Graphic by KNAUER.
Factors influencing detector selection
As you can see, there is no one-size-fits-all HPLC detector. Selecting the right detector from the wide range of options available depends on the physicochemical properties of your analytes as well as the required sensitivity, selectivity, and compatibility for your application. Choosing the appropriate detection technique is essential for obtaining accurate, reliable, and meaningful results.
Here are some key aspects that should be considered when choosing the detector for your HPLC analysis.
1. Properties of the Analyte
The nature and properties of the substances being analyzed can help identify the most suitable detector. Consider the presence of chromophores, fluorescence properties, polarity or molecular weight.
2. Sensitivity Requirements
The sensitivity of the detector is a crucial factor, as it sets the lower limit of detection for your analyte. The required level of sensitivity depends on both the analyte concentration and specific application. While UV/Vis detectors are common workhorses for routine analysis, advanced techniques like MS, CAD, or fluorescence offer superior sensitivity and specificity for complex samples or trace-level analysis.
3. Linearity
The linearity of a detector indicates its ability to respond proportionally to the analyte's concentration. A linear response is crucial for accurately quantifying analytes.
4. Dynamic Range
The detector’s dynamic range indicates the concentration range over which it can effectively detect analytes. A broad dynamic range is essential for applications where analyte concentrations vary widely.
5. Selectivity
The detector’s selectivity describes its ability to distinguish the analyte from other compounds within the sample matrix. This is especially crucial for complex samples where interference from other substances may occur. If the sample consists of a complex mixture with unknown components, mass spectrometry detection may provide advantageous results.
6. Budget
The cost of the detector should be taken into account as well, as some options are more expensive than others. UV-Vis and refractive index detectors are generally more cost-effective compared to mass spectrometry or fluorescence detectors. Nevertheless, the cost should be always weighed against performance requirements and overall value that the detector provides.
7. Compatibility
It is essential that the detector is compatible with the specific flow rate and pressure range used in your HPLC system. In addition, make sure that the selected detector can work effectively with the chosen mobile phase without causing interference.
8. Non-destructive or Destructive
Consider whether you want to analyze or purify a sample. For analytical approaches there is the greatest flexibility in selecting detectors, as a wide range of options – including both non-destructive and destructive detectors – is available. For preparative purposes, destructive detectors are usually not attractive.
9. Reliability & Ease of Use
Some detectors are plug-and-play, while others require daily calibration, frequent maintenance or a more complex infrastructure. When selecting a more elaborate detector, consider the expertise of lab personnel and the availability of service support.

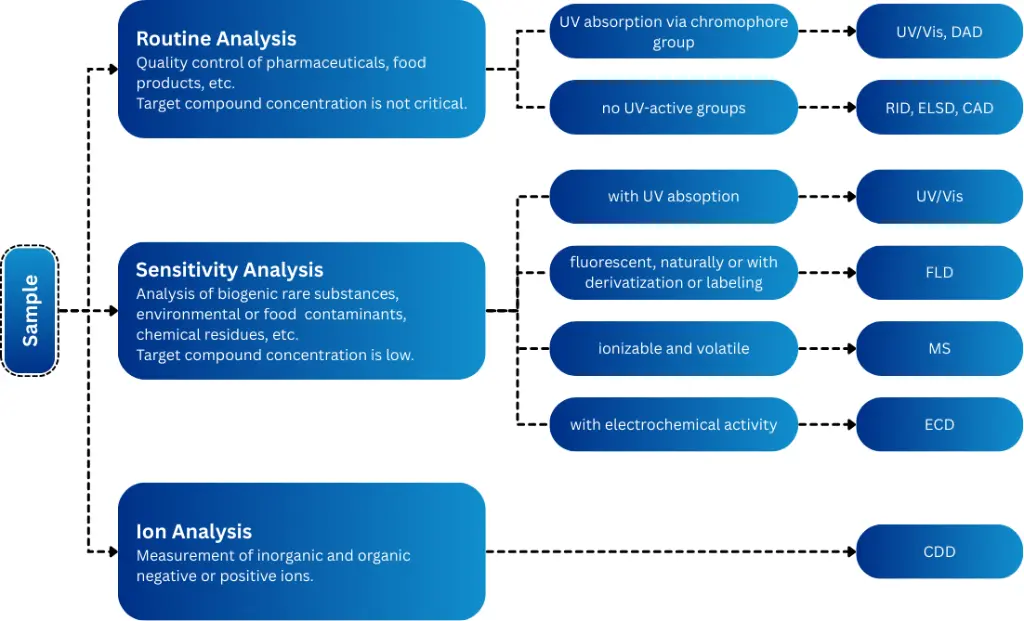

Understanding your sample and your analytical objectives is the crucial first step in seeing what’s there. So, considering all these factors, which detector should I choose exactly? This flow scheme should help you out. Do not simply select a detector based on availability — ensure it aligns with your chemistry and workflow requirements. Of course, you can also combine multiple detectors in one HPLC system to enhance analytical power and get greater insights.
Flow scheme for detector selection. Graphic by KNAUER.
Got curious? Stay tuned for upcoming blog posts where we will dive a bit deeper into each individual detection technique.
KNAUER HPLC systems are compatible with various detectors, ensuring a flexible and reliable workflow tailored to your application needs. Find our whole detection portfolio here. Need help choosing the right detector setup for your specific application? Contact our sales team or your local distributor.
