Eluent Preheating in Preparative HPLC: Necessity and Benefits
In preparative high-performance liquid chromatography (HPLC), where large columns and high flow rates are common, managing temperature is crucial for optimal performance. While most HPLC systems include column ovens to control column temperature, preheating the mobile phase (eluent) before it enters the column is often essential to maintain consistent conditions. Without proper eluent preheating, discrepancies between the solvent temperature and the column temperature can lead to thermal gradients, reduced separation efficiency, and poor peak shapes. This translation presents the key reasons why eluent preheating is necessary in preparative HPLC and outlines the benefits it provides. It also highlights the features and advantages of KNAUER’s Heating Sleeves and KNAUER’s High Flow Eluent Heater, which are designed to ensure stable thermal conditions for preparative HPLC applications.
Why Eluent Preheating is Necessary in Preparative HPLC
Larger Column Dimensions and Thermal Gradients: Preparative HPLC columns typically have a larger inner diameter than analytical columns. As column diameter increases, it becomes more difficult for a traditional column oven (which heats the column from the outside) to uniformly heat the entire cross-section of the column — especially when the inside of the column is being constantly cooled by incoming room-temperature solvent. The cool eluent entering a hot column can create a radial temperature gradient (hot at the periphery, cooler at the core). This gradient means that different parts of the column operate at different temperatures, leading to inconsistent separation conditions across the column radius. The result is often distorted or broadened peaks, because sample molecules experience varying viscosities and retention environments depending on their position in the column.
Impact on Peak Shape and Efficiency: If the eluent is not preheated to match the column temperature, the radial thermal imbalance can severely degrade column performance. In fact, in one example with a moderately sized 4 mm ID column under fast UHPLC conditions, a radial temperature gradient caused the effective plate count to drop by more than half, essentially ruining the separation. In preparative HPLC, column IDs are often much larger (e.g. 20 mm, 50 mm, or even 100 mm), so the potential efficiency loss due to thermal gradients is significant. An experiment with a 20 mm ID prep column showed that running at 40 °C without preheating the mobile phase led to very poor peak shapes. Only when the mobile phase was pre-conditioned (heated to the same temperature) did the chromatographic peaks become sharp and symmetric. This demonstrates that thermal mismatches can cause severe band broadening or even peak splitting, whereas proper preheating preserves peak integrity.
Frictional Heating at High Flow Rates: Preparative HPLC also involves high flow rates to achieve faster processing of large sample volumes. Even if the column is operated at a moderate pressure, the combination of high flow and pressure generates significant frictional heat within the column. Notably, the amount of heat generated is proportional to the product of pressure and flow rate (essentially the hydraulic power dissipated as heat). This means that for a given column, 800 bar at 1 mL/min produces a similar heating effect as 400 bar at 2 mL/min. In preparative scenarios, you might only be running at, say, 100–200 bar, but at 10–50 mL/min or higher flow rates – the frictional heating can still be considerable. If this internally generated heat is not managed (for example, if the incoming solvent is much cooler than the column), it can exacerbate temperature gradients along and across the column. Therefore, even at lower pressures, extreme flow rates demand caution and effective thermal management to avoid loss of performance.
In summary, without eluent preheating, a preparative column at elevated temperature may suffer from:
- Radial temperature differences between the column center and edges, causing non-uniform separation conditions.
- Loss of efficiency and resolution (significant reduction in theoretical plates) due to thermal broadening of peaks.
- Poor peak shapes (tailing, fronting, or splitting) as a result of the uneven temperature profile.
- Inconsistent retention times, since parts of the column are effectively running at different temperatures.
- Potentially higher backpressure, as colder solvent entering a hot column can temporarily increase viscosity in the column until it heats up.
These issues underscore the necessity of preheating the mobile phase in preparative HPLC: it ensures the solvent is at (or near) the target column temperature upon entry, thereby minimizing any thermal shock or gradients.
Benefits of Preheating the Eluent
By implementing eluent preheating, one can achieve stable and uniform temperature conditions throughout the chromatographic system, leading to several important benefits:
- Sharper Peaks and Higher Efficiency: When the eluent is preheated to match the column temperature, the column operates under nearly isothermal conditions. This eliminates radial temperature gradients and ensures that the entire sample band moves through a uniform environment. The result is improved peak shape and minimal band broadening, even for large-diameter columns. Consistently sharp and symmetric peaks translate to higher separation efficiency and better resolution of compounds.
- Reproducible Retention Times: Temperature fluctuations can cause shifts in retention time. Preheating the mobile phase helps maintain the column at a stable, defined temperature from inlet to outlet, which in turn yields very consistent retention times run-to-run. By keeping both the column and the incoming eluent at the same set temperature, you establish steady-state conditions that improve method reproducibility and reliability.
- Avoidance of Thermal Mismatch Effects: A stable thermal environment prevents issues like peak splitting or irregular peak shapes that occur when a cold solvent meets a hot column (or vice versa). As demonstrated in the Gingko extract example, not only must the column be heated, but the entire flow path needs to be thermally equilibrated for optimal results. Preheated eluent ensures that the separation conditions at the column inlet are the same as those inside the column, thus avoiding the “cold spot” at the column entrance that would otherwise distort the chromatography.
- Lower Solvent Viscosity and Reduced Backpressure: Heating the mobile phase lowers its viscosity. In practical terms, a warmer solvent will flow more easily through the column, which can reduce the backpressure on the system. This is especially beneficial in preparative HPLC, where high flow rates and viscous solvent mixtures might push the limits of pump pressure. By preheating, one can often achieve the desired flow rate at a lower pressure or allow for higher flow rates within the same pressure limit. Lower viscosity also improves mass transfer kinetics, potentially enhancing the speed and efficiency of separation.
- Overall Enhanced Performance and Throughput: With sharper peaks, better resolution, and the possibility of higher flow rates, productivity in preparative purifications increases. You can process larger amounts of sample faster without compromising on separation quality. Additionally, well-controlled temperature minimizes variability, which is important for method scalability and compliance (e.g., in pharmaceutical prep HPLC, where reproducibility is key).
In short, preheating the eluent is not just a “nice-to-have” but often a “must-have” in preparative HPLC. It ensures that both the column and mobile phase start on equal footing temperature-wise, thereby delivering the best possible separation performance.
To visualize the impact, the table below compares preparative HPLC operation with and without eluent preheating:
Condition |
Without Preheating |
With Eluent Preheating (Solvent at column temperature) |
---|---|---|
Column Temperature Profile | Significant radial and axial temperature gradients; center of column remains cooler than the edges. | Uniform temperature throughout column; no significant radial gradients. |
Peak Shape & Efficiency |
Broadened, tailing, or even split peaks due to thermal mismatch and uneven analyte migration. Efficiency (plate count) greatly reduced (up to 50% loss observed in 4 mm ID columns under extreme conditions). |
Sharp, symmetric peaks with high efficiency. Minimal band broadening; full theoretical plate count potential is realized. |
Retention Time Stability |
Less predictable retention times; warm-up of solvent inside column can cause shifts and variability. |
Highly reproducible retention times due to stable isothermal conditions. |
Backpressure |
Initially higher due to higher viscosity of cold solvent entering the heated column; frictional heating may cause uneven viscosity profile along column. |
Lower and consistent, as solvent viscosity is reduced by heating before entering the column, yielding smoother flow. |
Throughput & Load |
Limited by need to avoid extreme thermal effects; may require slower runs or lower injection loads to maintain performance. |
Can maintain performance even at higher flow rates and loads, improving throughput, since thermal conditions are controlled. |
By addressing the thermal challenges in large-scale chromatography, preheating protects the integrity of the separation and allows the chromatographer to exploit the full capabilities of preparative columns.
KNAUER Heating Sleeves: Ensuring Uniform Column Temperature

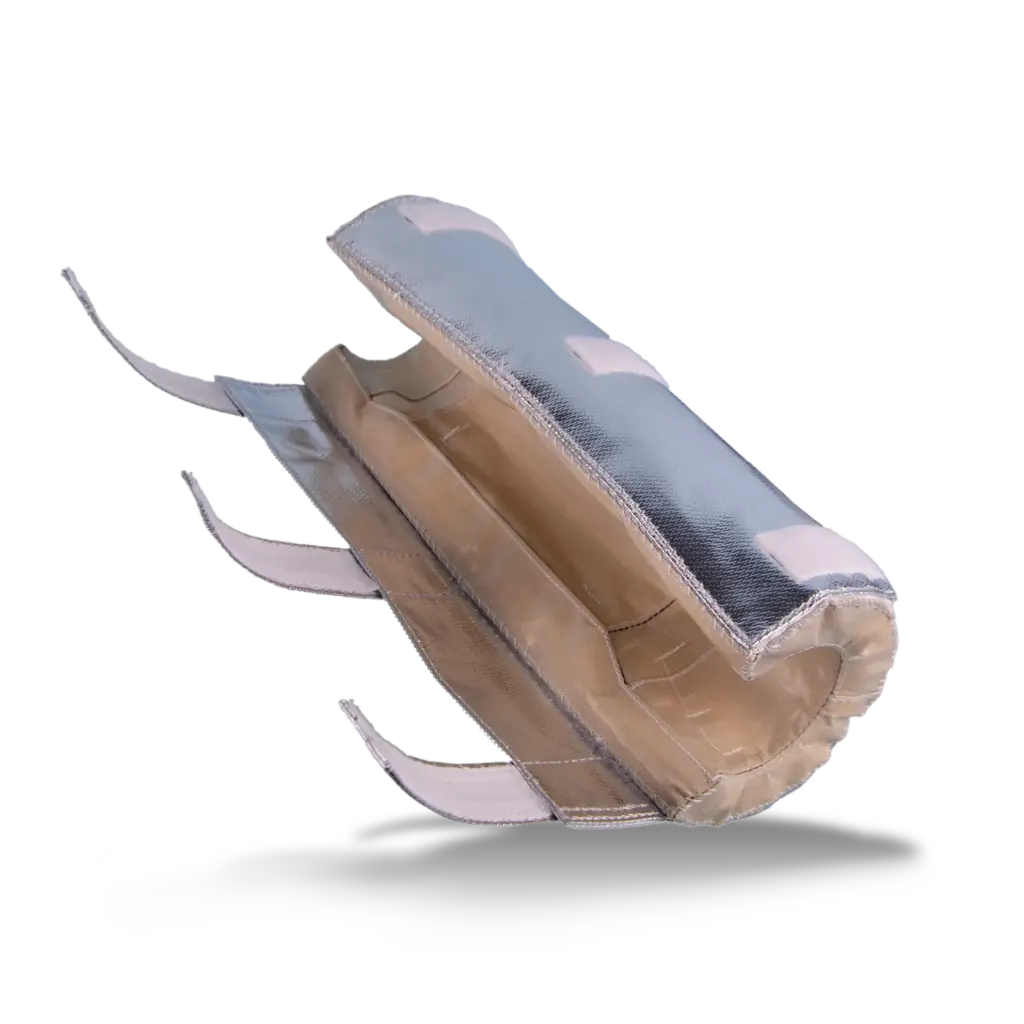

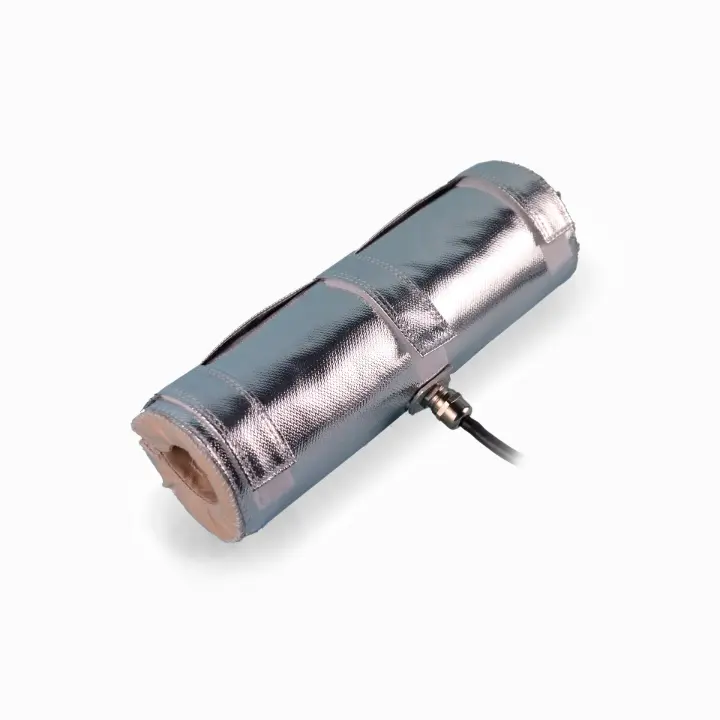

To maintain a stable column temperature across the entire column — especially for large preparative columns that may not fit into standard column ovens — KNAUER offers column heating sleeves. These heating sleeves are essentially flexible heaters that wrap around the column body, providing direct and uniform heat along the column’s length. They are designed to thermostatically control the column temperature up to 100 °C, even for very large columns (up to 1000 mm length × 100 mm ID). This capability makes them ideal for preparative columns, which often have custom dimensions and do not easily fit in conventional thermostatted column compartments.
Key features and advantages of KNAUER Heating Sleeves include:
- Uniform Heating for Large Columns: Unlike air-based column ovens that may struggle with large diameters, heating sleeves deliver heat directly in contact with the column wall. This ensures that even very wide columns receive homogeneous heating throughout, eliminating cold spots along the column.
- Custom Fit and Compatibility: KNAUER heating sleeves are available in various standard sizes and can even be custom-manufactured to fit specific column hardware. This means you can obtain a sleeve that perfectly matches your column dimensions (length and diameter), ensuring efficient heat transfer. The sleeves are compatible with a range of column sizes — for instance, they can accommodate preparative columns up to 100 cm in length and 10 cm in diameter.
- High Temperature Range: They can operate up to 100 °C, covering the typical temperature range used in HPLC method development. For many preparative applications, running at elevated temperature (e.g. 50–80 °C) can significantly improve separation or reduce solvent viscosity; the heating sleeve makes this feasible and stable. (If even higher temperatures are required for a special application, KNAUER can provide tailored solutions on request.)
- Improved Performance and Viscosity Control: By maintaining the column at the desired temperature, solvent viscosity inside the column is reduced, which helps in two ways: it lowers the operating backpressure and can improve mass transfer. KNAUER notes that their heating sleeves are a “compact and cost-effective solution” for both improving chromatographic performance and reducing solvent viscosity in prep HPLC. This means you can run your preparative method more efficiently or potentially at higher flow rates than would be possible with an unheated column, all while preserving performance.
- Ease of Use and Setup: Heating sleeves are relatively easy to install on the column and do not require a bulky oven apparatus. They wrap around the column and connect to a temperature controller. This compact form factor saves space in the lab and allows for flexible setup (for example, columns can be operated vertically or horizontally with the sleeve on). It’s a practical solution when retrofitting existing systems for better thermal control.
When used in conjunction with an eluent preheating device, the column heating sleeve ensures that the column temperature is uniformly maintained from start to finish, complementing the work done by preheating the mobile phase. Together, they create a truly isothermal environment for the separation.
KNAUER High Flow Eluent Heater: Precise Pre-Column Tempering

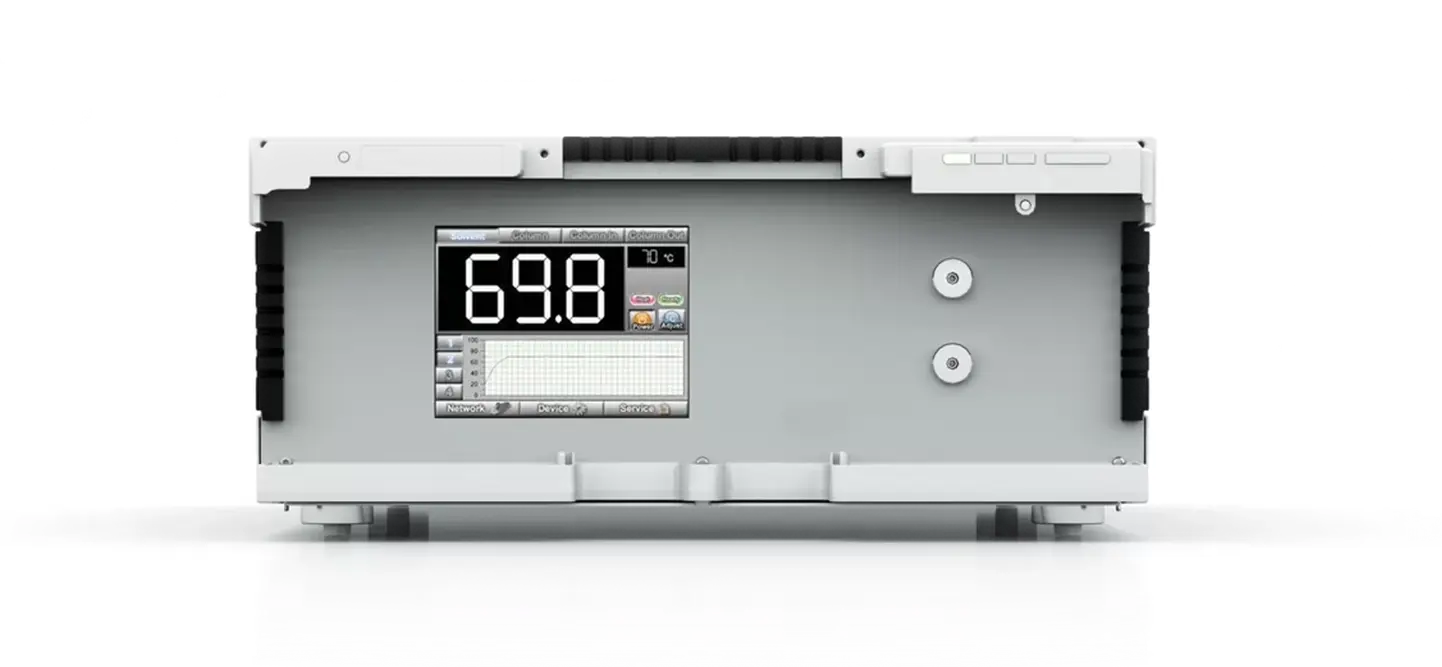

While the heating sleeve takes care of the column itself, the KNAUER High Flow Eluent Heater is designed to heat the mobile phase (and sample, if applicable) to the target temperature before it enters the column. In KNAUER’s product line, this is exemplified by devices like the AZURA® ELH 2.1L Eluent Heater, which is built specifically for high-volume flow rates used in preparative LC. The eluent heater is typically plumbed right after the pump (and injector) and brings the solvent to the set temperature as it travels through a heating coil, so that by the time the solvent reaches the column inlet, it’s already at the correct temperature.
Notable features and advantages of the KNAUER High Flow Eluent Heater include:
- Supports High Flow Rates: The device is engineered for preparative scale flow rates. It can accommodate flow ranges up to 300 mL/min while still effectively heating the solvent. This capacity covers the needs of most semi-prep and preparative HPLC systems (for example, flows from a few mL/min up to hundreds of mL/min). Even at such high flow, the heater can adjust and maintain the desired temperature, which is critical for scale-up processes.
- Wide Temperature Range: It can heat eluents to temperatures as high as 100 °C. In practice, most users won’t need the absolute maximum, but having a wide range means flexibility to optimize methods (for instance, some purifications might work best at 60 °C or 80 °C to lower solvent viscosity or improve solubility of analytes). The heater ensures the solvent reaches the set temperature accurately.
- Dual Eluent Channels and Column Integration: The KNAUER high flow eluent heater is often configured with two heating channels – meaning it can handle two separate solvent streams in parallel. This is useful for systems using binary solvent mixtures or two independent columns. In fact, the AZURA ELH 2.1L model can control the temperature of up to two eluents and simultaneously support two column heating sleeves. This all-in-one control is especially handy for complex preparative setups or when running two columns (e.g., in a two-dimensional chromatography setup or simply two prep columns in parallel). It ensures both the solvents and the columns are at their respective setpoints.
- Precise Temperature Control with Minimal Dead Volume: The eluent heater is designed with minimized internal volume so that it doesn’t introduce extra dispersion or delay. It often includes a heating coil cartridge that provides efficient heat exchange without causing peak broadening. Additionally, KNAUER’s device comes with external temperature sensors (PT100) that can be placed at critical points, such as the column inlet and outlet, to monitor the actual solvent temperature reaching and exiting the column. This feedback allows very precise regulation: if the sensor at the column inlet detects any deviation from the target temperature, the heater can adjust accordingly. Such fine control guarantees that the eluent is truly at the desired temperature when entering the column and remains so throughout the run.
- Integration and User Interface: The High Flow Eluent Heater integrates seamlessly with KNAUER’s modular AZURA preparative HPLC systems. It can be controlled via PurityChrom® software or via an integrated touchscreen interface on the device. The touchscreen (5.7” color TFT display) provides an easy-to-use control panel for setting temperatures for each channel and viewing real-time readings. This level of integration means that the heater can be programmed as part of the HPLC method – for example, to set different temperatures for different steps if needed (though most often it remains constant for a given method). The stackable design of AZURA modules ensures the heater can be conveniently included in the system without a large footprint.
- Cleanroom-Friendly Version: KNAUER also offers variants for specialized environments. This version is suitable for operation in cleanrooms and similarly supports an eluent preheater module plus a column heating sleeve within one device. It’s built with enclosures and materials that meet cleanroom standards (and in general, the devices are robust and safe to use with high flows and flammable solvents at high temperature).
By using the High Flow Eluent Heater, the mobile phase is thermally conditioned before it meets the column, ensuring no temperature drop occurs upon contact. This dramatically reduces the formation of any temperature profiles inside the column. The combination of a preheating device and a heating sleeve thus keeps both the mobile phase and the stationary phase environment in thermal equilibrium.
Conclusion
Eluent preheating plays a vital role in preparative HPLC, where the scale and operating conditions push the boundaries of conventional HPLC setups. By minimizing temperature differentials between the mobile phase and the column, preheating preserves the efficiency and resolution of the separation and ensures reproducible results. In practical terms, it means better peak shapes, stable retention times, and the ability to run high-throughput purifications without compromising performance.
KNAUER’s solutions for temperature control in prep HPLC — Heating Sleeves for columns and the High Flow Eluent Heater — address this need effectively. The heating sleeve keeps even the largest columns uniformly heated, while the eluent heater makes sure the solvent is up to temperature and ready to perform as it enters the column. Implementing these tools in a preparative HPLC system eliminates the common thermal challenges, such as radial temperature gradients and frictional heating effects, by creating a truly controlled thermal environment from pump to detector.
In summary, preheating the eluent is both necessary and highly beneficial in preparative liquid chromatography. It is a straightforward step that yields significant improvements in separation quality. With modern equipment like KNAUER’s pre-column tempering devices, achieving these stable conditions is easier than ever. Laboratories engaging in preparative HPLC can thus enhance their purification outcomes, scale up methods confidently, and ensure that their chromatography is as reproducible, efficient, and high-performing as possible. By taking care of temperature consistency through eluent preheating and column heating, one can truly optimize the capabilities of preparative HPLC systems for any challenging separation task.
