Automated two step purification with cation exchange chromatography and desalting

Ulrike Krop, Kate Monks; applications@knauer.net KNAUER Wissenschaftliche Geräte GmbH, Hegauer Weg 38, 14163 Berlin

Summary

In many cases protein purification requires two or even more steps to achieve sufficient purity. The transition from one step to another can be very time consuming and requests manual interaction. These limitations illustrate the need for FPLC systems enabling automated two step purification. This application highlights the possibility of combining two subsequent chromatography protocols. This was achieved using the KNAUER Lab standard Multi Method FPLC system adapted for automatic two step purification. An exemplary separation of model proteins by cation exchange chromatography followed by desalting is shown. This approach can easily be adapted to various protein purification protocols.

Introduction

For many protein purifications several chromatographic steps are used to achieve pure protein. Depending on the desired yield and purity of the target protein different methods are combined. In many cases two steps for protein purification are used. For the two step purification two independent methods, each with their associated specific column, are used to realize the purification of the target molecule without manual interference. The general principle is that the protein sample is applied on the first column. During elution of the protein, the protein peak is detected triggering its collection in a storage loop or storage vessel. Subsequently, the target protein is automatically applied on the second column to further enhance the quality and/or purity. The fast and automated connection of two chromatographic purification steps into one method eliminates manual sample handling and minimizes time spent between steps. This automation strategy can be easily adapted to several purification tasks increasing your efficiency and optimizing the workflow. In this application note a KNAUER Lab standard Multi Method FPLC system for all bio chromatography methods was adapted for two step purification. Two model proteins cytochrome C and ribonuclease A were separated by cation exchange chromatography. Cytochrome C was automatically stored in a sample loop and applied onto a second column for buffer exchange with a desalting column.

Results

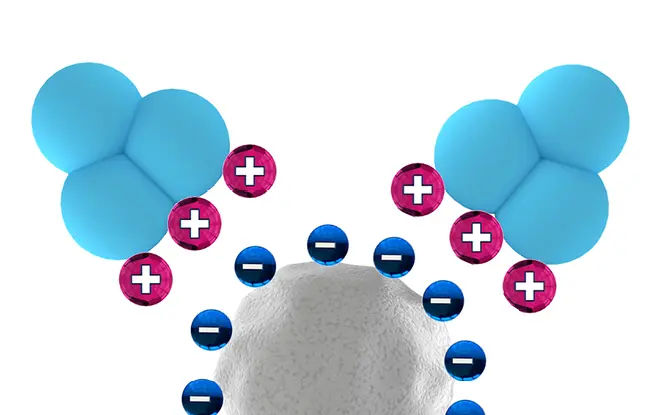

The first step of the separation was cation exchange chromatography. The proteins where chosen due to their positive charge in buffer at pH 6.8. Ribonuclease A has an isoelectric point of 9.6, while for cytochrome C a range from 10.37 to 10.80 for the isoelectric point is reported. With the starting conditions both proteins were binding to the cation exchange column. During gradient elution first ribonuclease A and later cytochrome C eluted from the column (Fig. 1). A threshold signal (Fig. 1, red line) was used to detect cytochrome C triggering the intermediate storage in the sample loop. The cytochrome C was subsequently reinjected on the desalting column to exchange the buffer to the final buffer conditions (Fig. 2). The eluted protein was fractioned.

Fig. 1 Chromatogram of the cation exchange method. Blue line: UV 280 nm (blue), conductivity (black), threshold used for peak recognition (red). 1 - Ribonuclease A, 2 - Cytochrome C.

Fig. 2 Chromatogram of the desalting method. UV 280 nm (blue), conductivity (black). 1 - Cytochrome C, 2 - Salt peak.

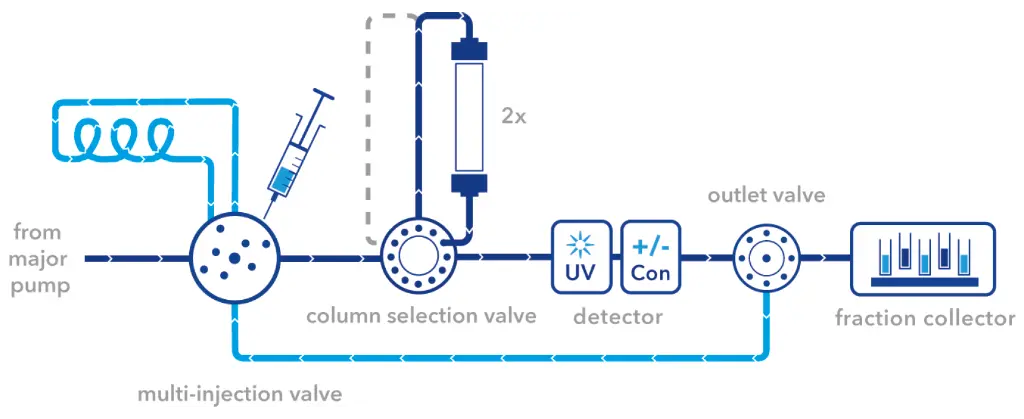

Fig. 3 Flow scheme of the lab standard KNAUER Multi Method FPLC system for all bio chromatography methods adapted for two step purification with the basic set up.

Sample Preparations

Lyophilized cytochrome C from bovine heart (CAS# 9007-43-6) and lyophilized ribonuclease A from bovine pancreas (9001-99-4) was used. Both proteins were dissolved in buffer A to a final concentration of 0.5 mg/ml. In total, 2 ml of sample (1 mg of each protein) was injected for each purification. The sample was filtered before use (0.45 µm). A Lab standard KNAUER Multi Method FPLC system for all bio chromatography methods was adapted for two step purification. A column selection valve and an outlet valve were added to the system. This shows the basic set up for two step purification. The reinjection position of the outlet valve was connected to the sample pump inlet of the injection valve. The sample is injected via the sample loop of the injection valve. The first peak is collected in the sample loop of the injection valve as well and reinjected onto the second column.

Conclusion

The model protein cytochrome C was successfully purified from ribonuclease A by an automated combination of a cation exchange chromatography and a desalting method on the Lab standard KNAUER Multi Method FPLC system in the basic set up for two step purification. No manual interaction was necessary. This method setup could easily be adapted to other purification protocols for the separation and purification of biomolecules highlighting.

Related KNAUER applications

VBS0070 – Ion exchange chromatography with AZURA® Bio purification system

VBS0072 – Separation of proteins with cation exchange chromatographyon Sepapure SP and CM

VBS0075 – Group separation with Sepapure Desalting on AZURA® Bio purification system

Materials and Methods

Tab. 1 Method

Tab. 2 Cation exchange method

Tab. 3 Desalting

Tab. 4 Wash and equilibration of cation exchange method

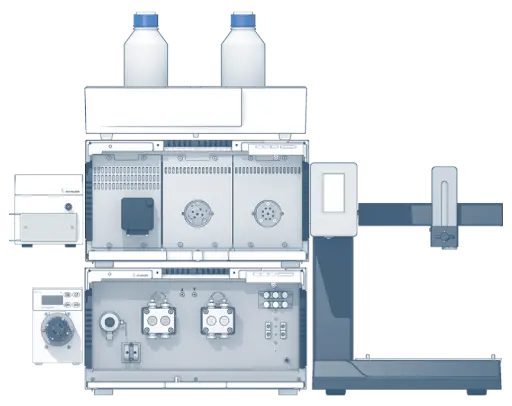

Tab. 5 System configuration

Application details
