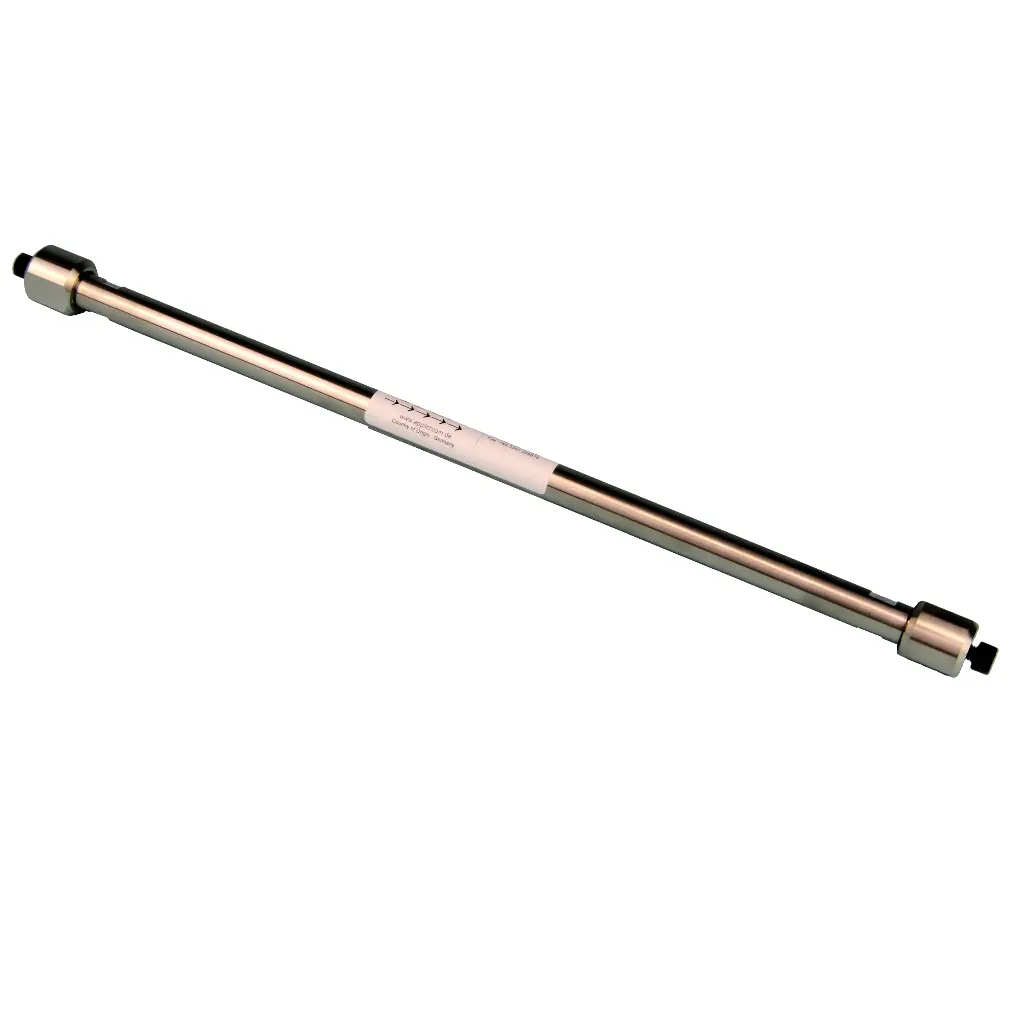

AppliChrom StyDiViBe-P-10E6A-BPT, GPC Column, 10 000 Å, 5 or 10 µm, 50 x 8 mm, separation range 100 Da-4 Mio Da
GPC columns for GPC analysis of organic molecules with THF, toluene, chloroform
Organic polystyrene-divinylbenzene copolymer base material with high porosity for high resolution
Properties
High pressure stability up to 150 bar and temperatures between 10-145 °C. Low column bleed for low detector noise and highest reproducibility.
Key features
High purity polymer phase to eliminate adsorptive effects and combine pure GPC with long lifetime. Large calibration ranges for several decades due to the unique process of BPT technology. Range of individual porosities that can be used individually or in combination.
Recommended eluents
THF, Toluene, CHCl₃, dichlorbenzene, hexane/EtOAc (10:90, V:V)
Recommended application areas
Hydrophobic oligomers or polymers like PVC, PMMA, polystyrene, epoxy resins, polyesters, bisphenol A resins
Internal Reference:
05G647KABN
Technical Data
| General | |
|---|---|
| Brand | AppliChrom® StyDiViBe-P |
| Units per Package | 1 |
| Includes | Column |
| Column Separation Mode | GPC (Gel Permeation Chromatography) |
| Column Length | 50 mm |
| Column Inner Diameter | 8 mm |
| Column Particle Size | 5 µm, 10 µm |
| Column Pore Size | 10000 Å |
| Specifications | |
|---|---|
| Column Base Material | Rigid, spherical styrene divenylbenzene copolymer (DVB) |
| Endcapping | No |
| Column Separation Range | 100 Da - 4 MioDa |
| Capillary Connection | 1/16" |
| Housing Material | Stainless Steel (SST) |
| USP Code | L21 |
| pH Range | 1-14 |
| Eluent Recommendation | THF, toluene, chloroform ... |
