Increased sample loading capacity for online SPE-HPLC analysis of PAHs in water

J. Kramer; applications@knauer.net

KNAUER Wissenschaftliche Geräte GmbH, Hegauer Weg 38, 14163 Berlin

Photo: Freepik.com

Summary

Polycyclic aromatic hydrocarbons (PAHs) are environmental pollutants and are widespread across the globe mainly due to long-term anthropogenic sources of pollution. Due to their high mutagenic and carcinogenic potential a sensitive determination is mandatory. The used system configuration makes it possible to switch between direct injection via autosampler and injection with an auxiliary pump (feed pump) without changing/replumbing the system. The use of autosampler injection or injection via feed pump enables the user to inject a broad variety of different volumes from µl to ml scale.

Introduction

Polycyclic Aromatic Hydrocarbons (PAHs), also known as polyaromatic hydrocarbons are environmental pollutants and are widespread across the globe mainly due to long-term anthropogenic sources of pollution [1]. These organic compounds contain only carbon and hydrogen and are composed of multiple aromatic rings. These compounds are formed when oxygen is limited, and incomplete combustion of organic matter such as wood, tobacco products, or fossil fuels occurs. These pollutants do not break down and are very persistent in the environment [2]. Due to their high mutagenic and carcinogenic potential a sensitive determination is mandatory. Solid phase extraction (SPE) is a useful technique to enhance detection limits to analyse even very small amounts of these compounds. Most often SPE is carried out manually but coupled to an HPLC system, the so called online SPE technique allows an automated sample analysis. Generally, the following developed method is suitable for the determination of 16 PAHs according to EPA 610 method [3]. During the further measurements, the focus was set only on the following analytes: fluoranthene, benzo[b]fluoranthene, benzo[k]fluoranthene, benzo[a]pyrene, benzo[g,h,i] perylene, and indeno[1,2,3-cd]pyrene.

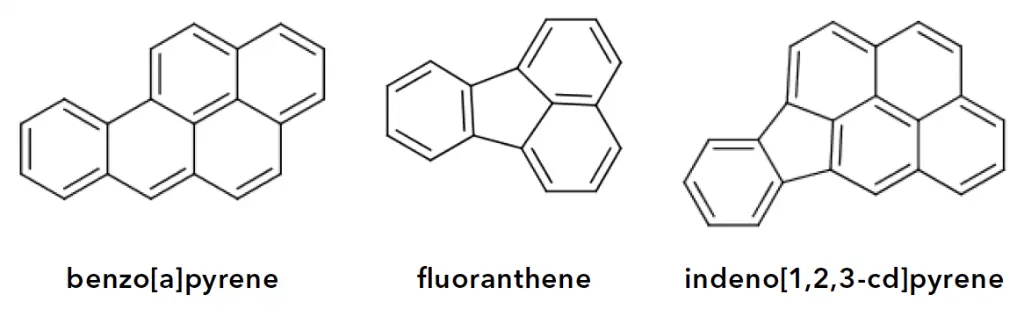

Fig. 1 Exemplary structures of selected PAHs

Sample Preparation

EPA 610 PAH mixed standard (Sigma Aldrich, product number: 4S8743) came as a ready to use solution. The mixed standard was diluted with acetonitrile:water 60:40 (v/v) to different concentrations.

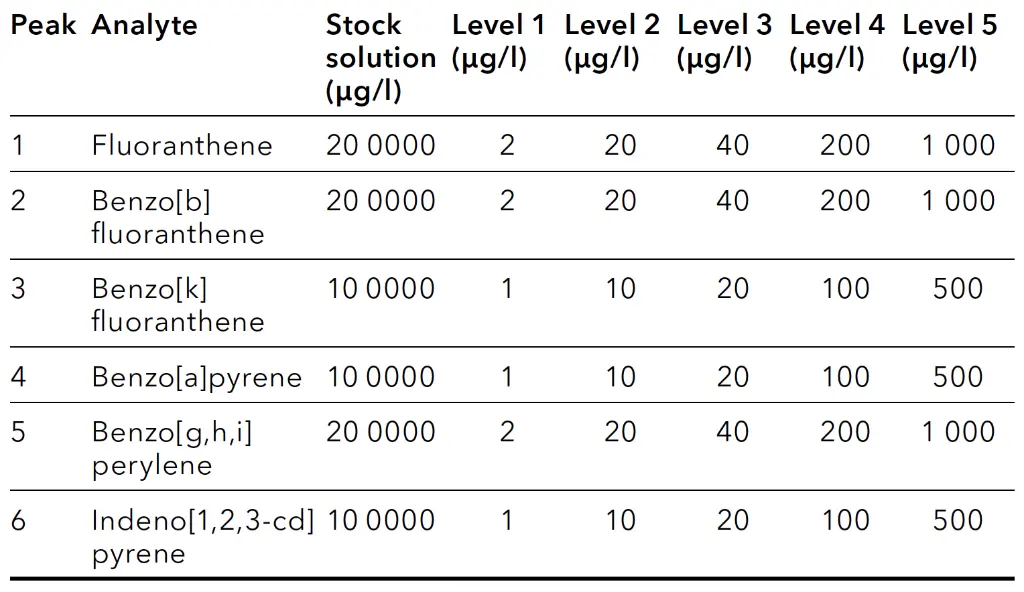

Tab. 1 Concentrations of PAHs in EPA 610 PAH mixed standard and calibration solutions

Results

To determine the method precision for all PAHs (Tab. 1) and online SPE, seven consecutive runs with the mixed standard in a dilution 1:103 were injected (5 µl injection volume). To determine the recovery of the trapping process on the SPE cartridge, the same volume (5 µl) of the mixed standard (dilution 1:103) solution was injected directly onto the analytical column and afterwards onto the SPE cartridge. The seven replicates of each method were averaged and compared.

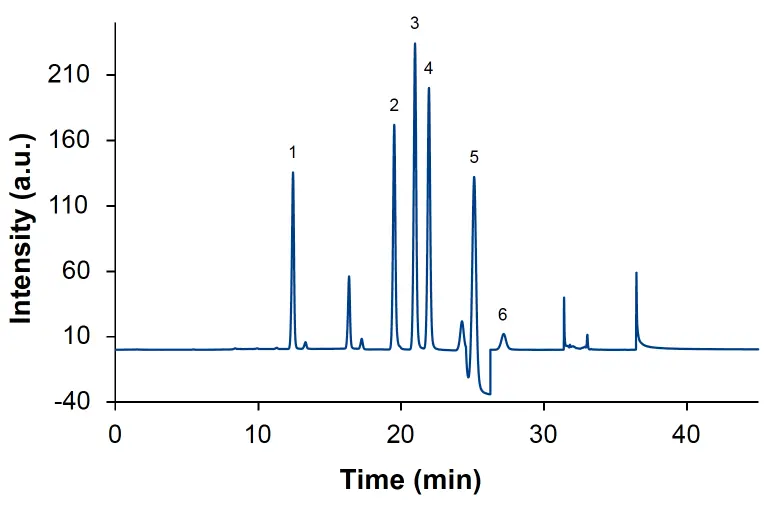

Fig. 2 Direct injection via autosampler of mixed standard, (1) fluoranthene, (2) benzo[b]fluoranthene, (3) benzo[k]fluoranthene, (4) benzo[a]pyrene, (5) benzo[g,h,i]perylene, (6) indeno[1,2,3-cd]pyrene

The drop of baseline (peak 5, Fig. 2) is a result of the fluorescence wavelength switching. Although an autozero was performed after switching, the baseline was not set to zero properly. Nevertheless, a determination of benzo[g,h,i]perylene is possible in high resolution. The precision of the direct injection method was calculated from 7 replicates.

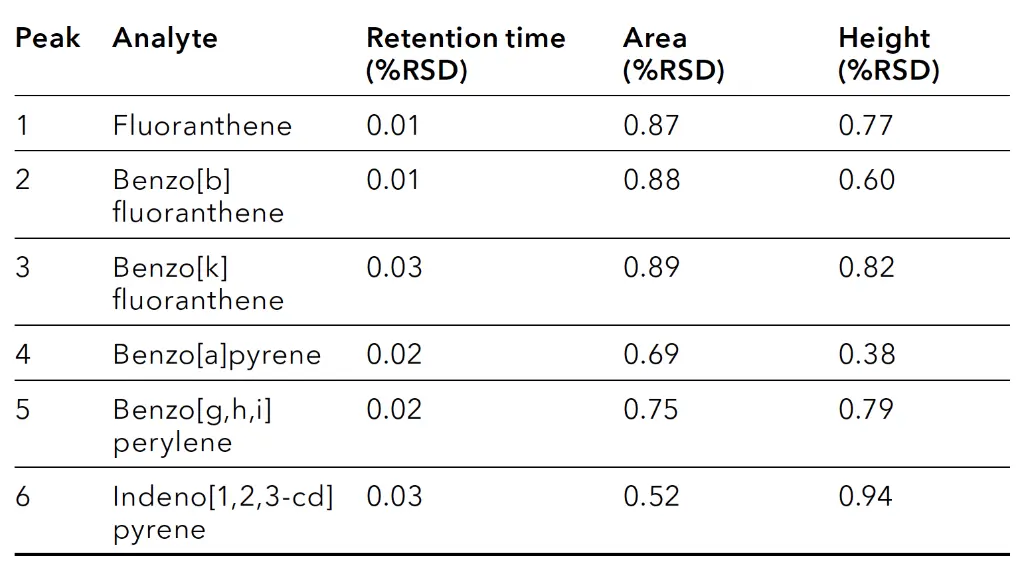

Tab. 2 Precision of direct injection

The relative standard deviation for retention time is below 0.05 % for all analytes. Values for area and peak height are below 1.00 % for all substances. The precision was again determined by injecting the same concentration of mixed standard (dilution 1:103) onto the SPE column.

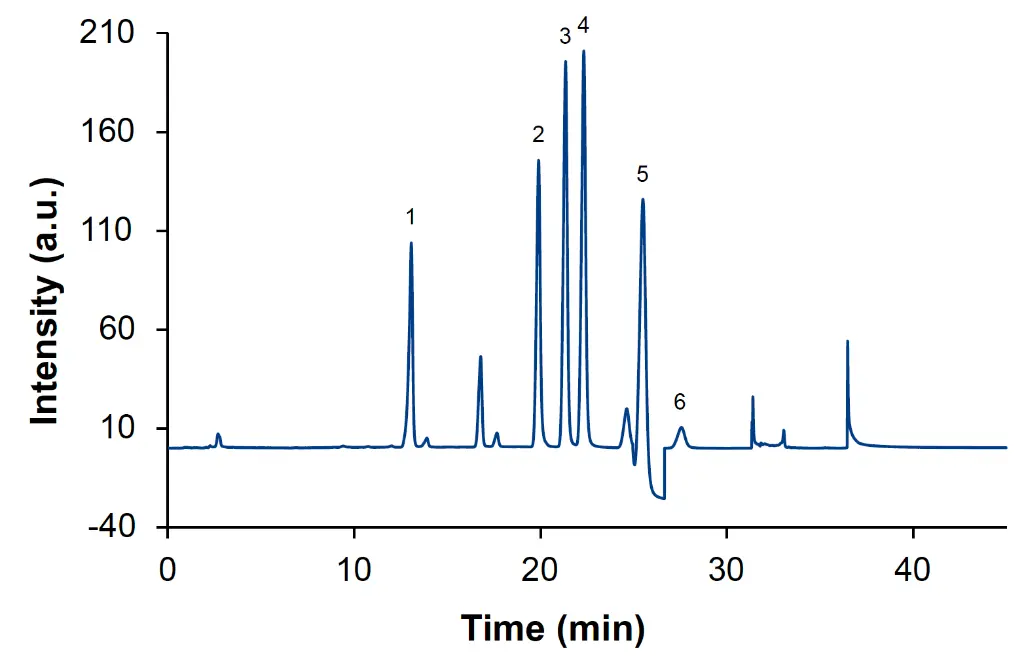

Fig. 3 Direct injection on SPE via autosampler, (1) fluoranthene, (2) benzo[b] fluoranthene, (3) benzo[k]fluoranthene, (4) benzo[a]pyrene, (5) benzo[g,h,i] perylene, (6) indeno[1,2,3-cd]pyrene

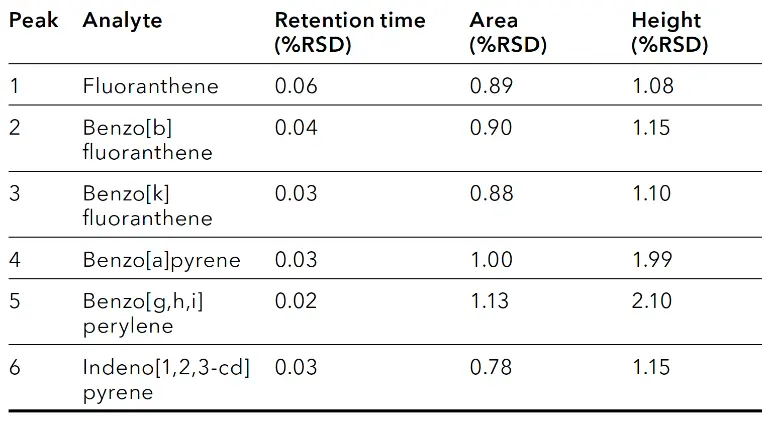

Tab. 3 Precision of SPE injection

The relative standard deviation for retention time using SPE is comparable to the direct injection and is below 0.07 % for all analytes. Values for area are below/equal 1 % RSD, except for benzo[g,h,i]perylene. Peak height is below 2 % RSD, again the value for benzo[g,h,i]perylene is slightly higher. The averaged values for peak area over the seven replicates are compared to determine the recovery of the SPE injection method.

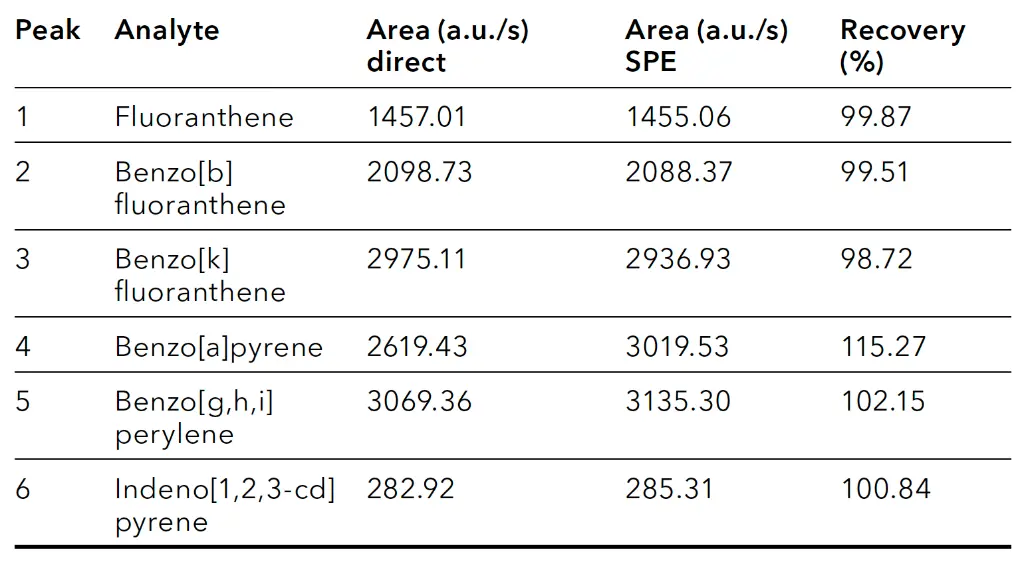

Tab. 4 Recovery

A five-point calibration was set up, with three replicates for each concentration level. The concentrations were listed in Tab. 1. To consider the varying injection volumes of direct injection and/or SPE injection, the calibrated concentrations were calculated as absolute values (Tab. 5).

For the direct injection the limit of detection (LOD) and limit of quantification (LOQ) were calculated. For LOD a signal to noise ratio (S/N) of S/N=3 and for LOQ a S/N=10 was taken as basis for calculation. The noise was determined using the software integrated ASTM calculation.

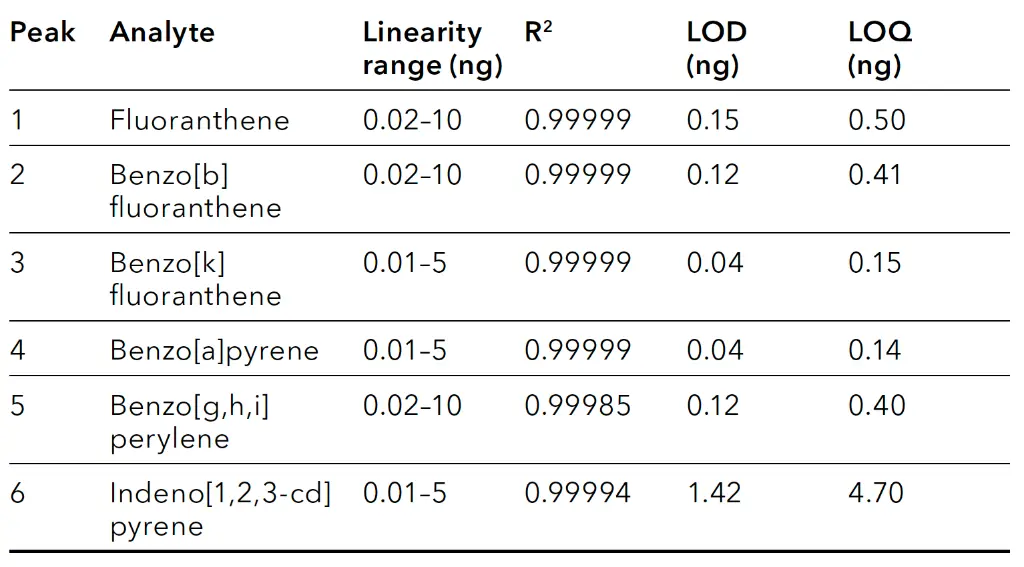

Tab. 5 Linearity range, correlation coefficient, LOD and LOQ

The next step was to increase the injected volume onto the SPE column using the feed pump to enhance the detection limits. The mixed standard in a dilution 1:105 (equal to concentration of lowest calibration level) was used. A volume of 1800 µl was loaded on the SPE cartridge. This volume is equal to 1 column volume of the analytical column.

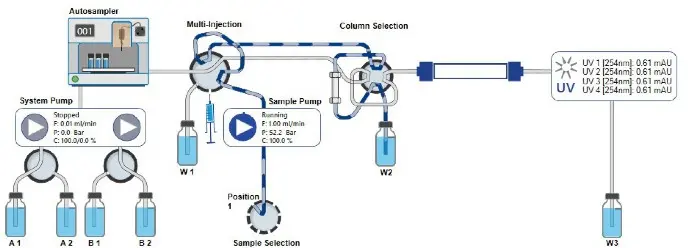

Fig. 4 Exemplary flow scheme for SPE load via sample/feed pump

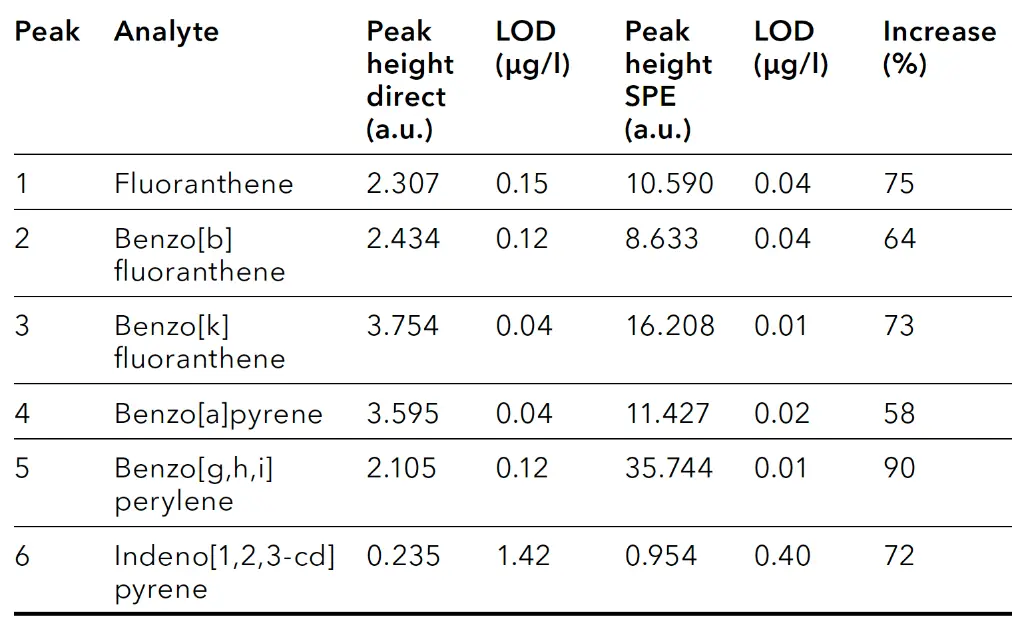

Tab. 6 Enhanced LOD, feed pump vs. direct injection

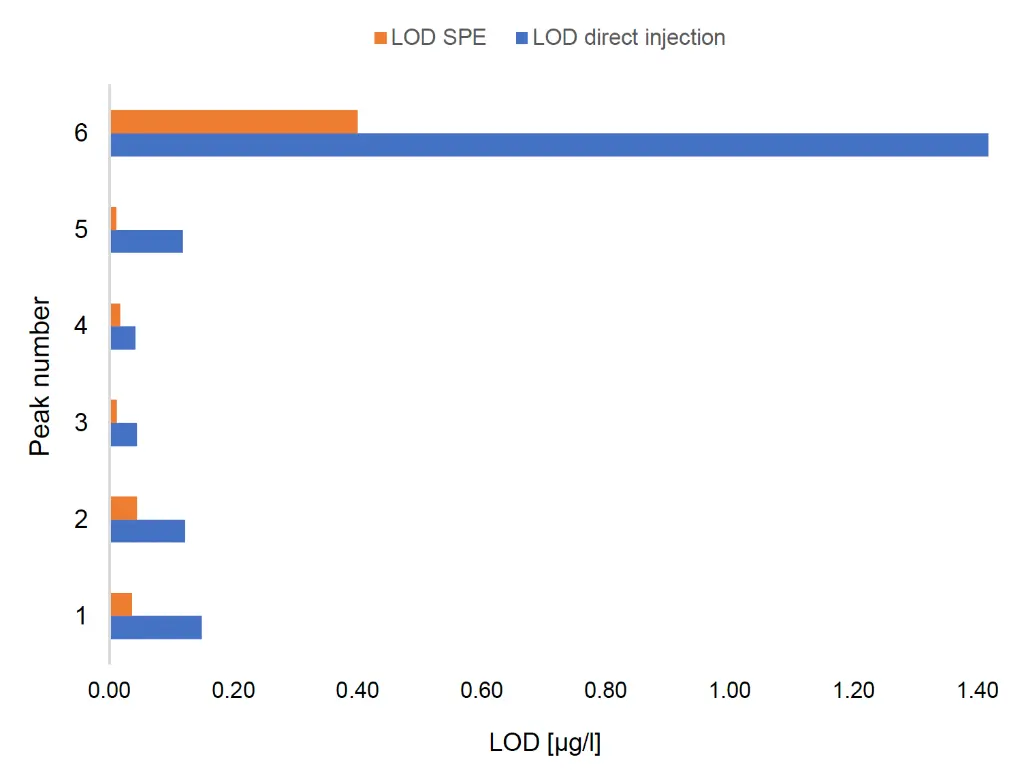

Fig. 5 Comparison of LOD values for direct injection (blue) and SPE injection (orange)

Using the feed pump for the SPE injection results in a lower limit of detection, which means that with the SPE method it is possible to detect lower concentrations of PAHs in the samples. The LOD was increased in a range from 50–90 %, still using a relatively low injection volume. These values are specific for an injection volume of 1800 µl and a 1:105 dilution (see Tab. 1, level 1).

Conclusion

The used system configuration makes it possible to switch between direct injection via autosampler and injection with an auxiliary pump (feed pump) without changing/ replumbing the system. The use of autosampler injection or injection via feed pump enables the user to inject a broad variety of different volumes from µl to ml scale. It was shown that the recovery of the SPE injection was in range from 80 %–120 % and all calibrations showed excellent linearity. The approach of injecting 1800 µl via the auxiliary feed pump has enhanced the detection limits. As seen in Tab. 6, the LOD was improved in a range from 50–90 %, still using a relatively low injection volume. Loading higher volumes on the SPE can lead to a further enhancement of the method sensitivity. Although, only six PAHs were investigated in detail, the method can also be used for the determination of all 16 PAHs according to EPA method 610.

Material and Methods

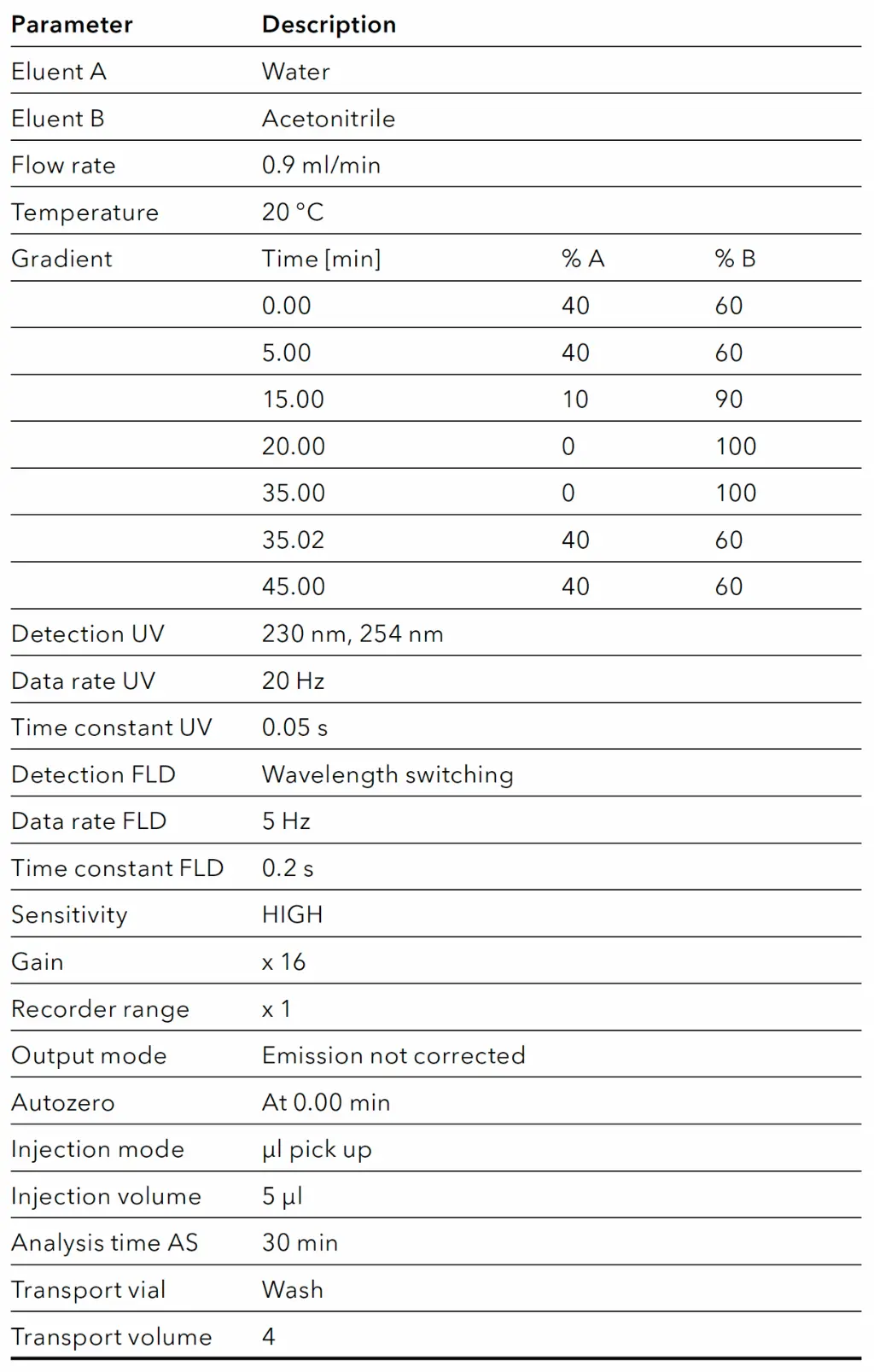

Tab. 7 Analytical method parameters for direct injection via autosampler and SPE method

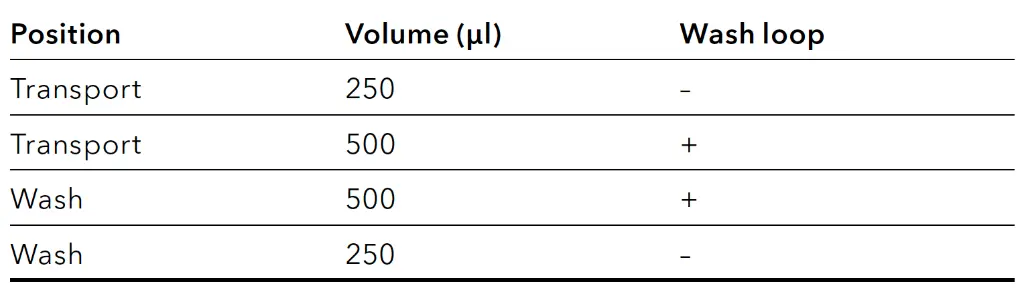

Tab. 8 Autosampler advanced wash program, after 30 min analysis time

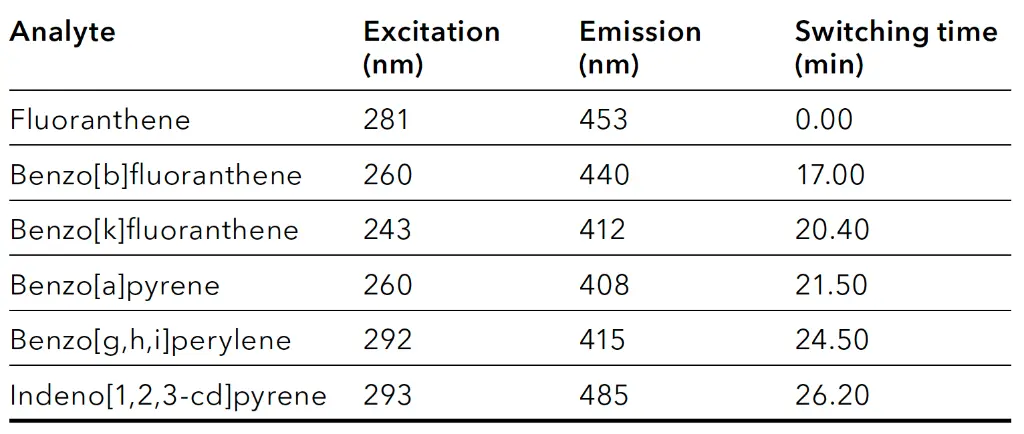

Tab. 9 Excitation/emission wavelength and switching times for PAHs, direct injection via autosampler

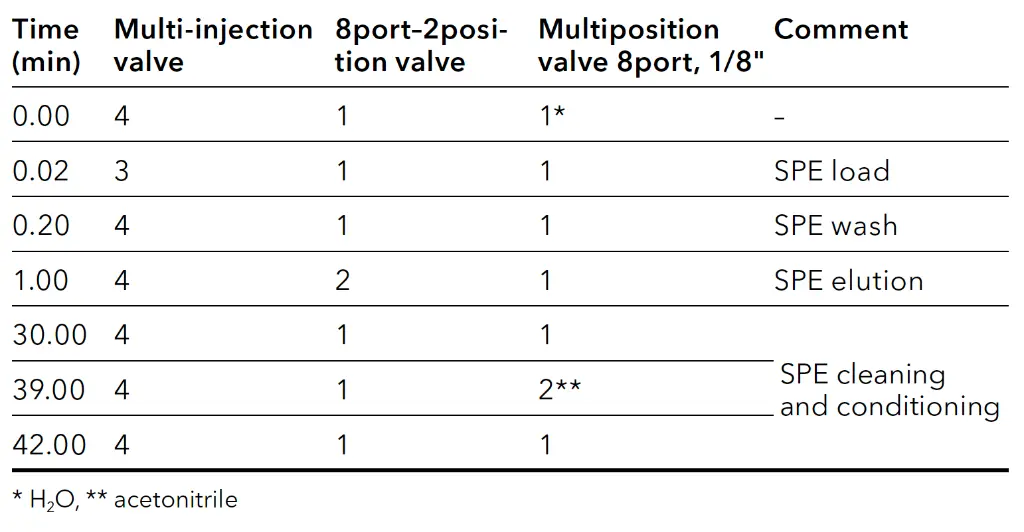

Tab. 10 Valve switching program, SPE loading/elution/cleaning

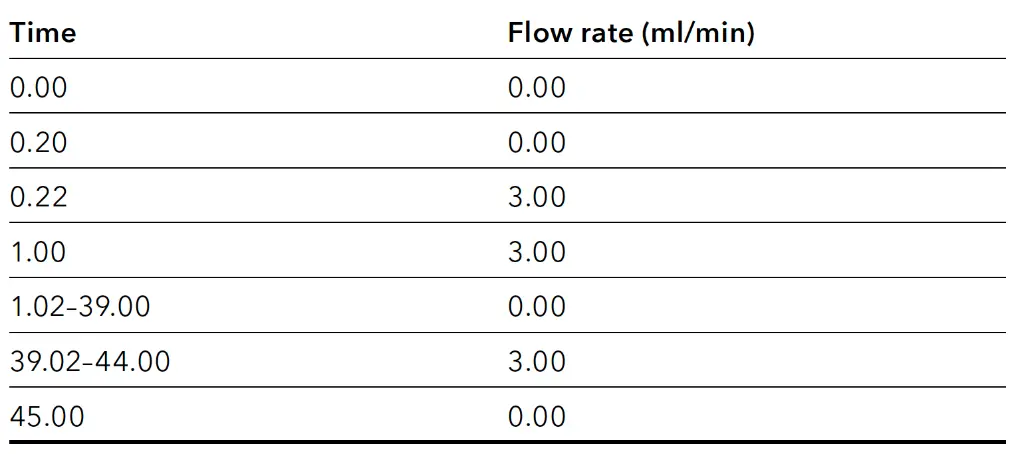

Tab. 11 Pump program for ASM 2.2L (aux pump), SPE washing/cleaning/ conditioning

System configuration

Component

Description

Article No.

Pump

AZURA P 6.1L HPG, 10 ml, 862 bar

APH35EA

Autosampler

AZURA AS 6.1L, Standard

AAA50AA

Detector UV

AZURA DAD 2.1L

ADC01

Flow cell

High Sensitivity KNAUER LightGuide UV Flow Cell Cartridge

AMD59XA

Detector FLD

Shimadzu RF-20A

A59200

Thermostat

AZURA CT 2.1

ATC00

Valve

AZURA Valve Unifier VU 4.1

AWA01XA

Valve

Multiposition Valve, 8 port, 1/8"

AVT34AE

Assistant

AZURA Assistant ASM 2.2L

AY03231


Left module: Pump P 4.1S, 10 ml, stainless steel

DPG22EA


Middle module: Valve drive VU 4.1

EWA04


Right module: Valve drive VU 4.1

EWA04

Valve

High-pressure injection Valve, 8 Port 2-position

AVC38AC

Valve

Multi-injection Valve, DLC stainless steel

AVN96AE

Column

NUCLEOSIL 100-5 C18 PAH, 5 µm, 150×4 mm


SPE column

Eurosil Bioselect 300-5 C8. 30×4 mm

03DK081EBJ

Software

ClarityChrom 8.5 – Workstation, autosampler control included

A1670

Software

ClarityChrom 8.5 – PDA extension

A1676

References

[1] https://www.ncbi.nlm.nih.gov/pmc/articles/ PMC7674206/, 2022/03/21

[2] https://www.istc.illinois.edu/research/ pollutants/PAHs, 2022/03/21

[3] https://www.epa.gov/sites/production/ files/2015-10/documents/method_610_1984.pdf, 2022/03/21

Application details

Method

HPLC

Mode

RP

Substances

EPA 610 PAH mixture, fluoranthene, benzo[b]fluoranthene, benzo[k]fluoranthene, benzo[a]pyrene, benzo[g,h,i]perylene, indeno[1,2,3-cd]pyrene

CAS number

206-44-0, 205-99-2, 207-08-9, 50-32-8, 191-24-2, 193-39-5
